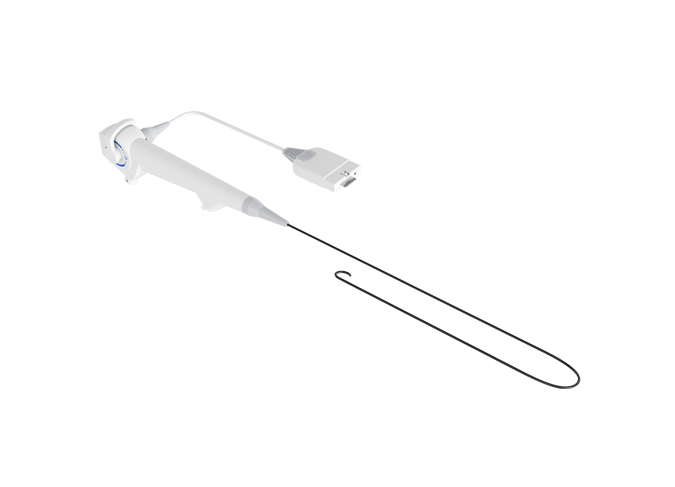

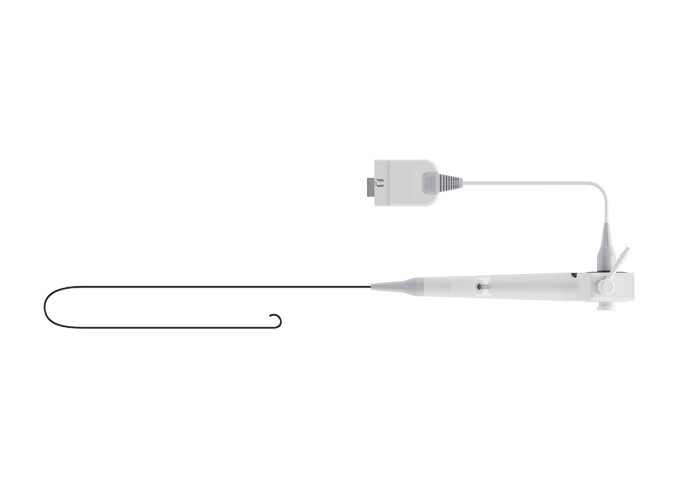

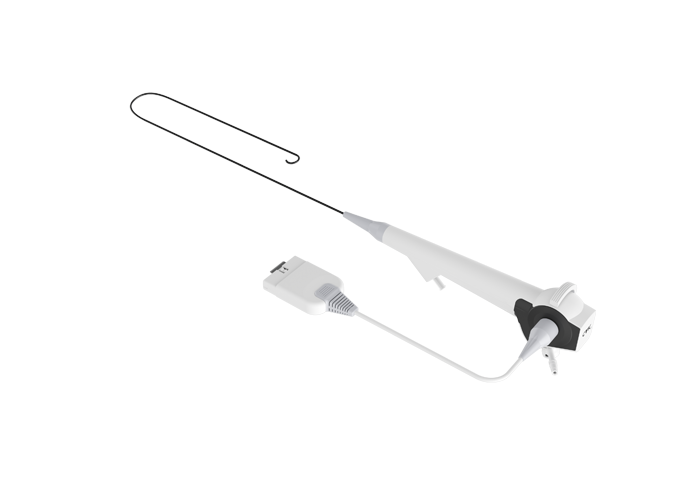

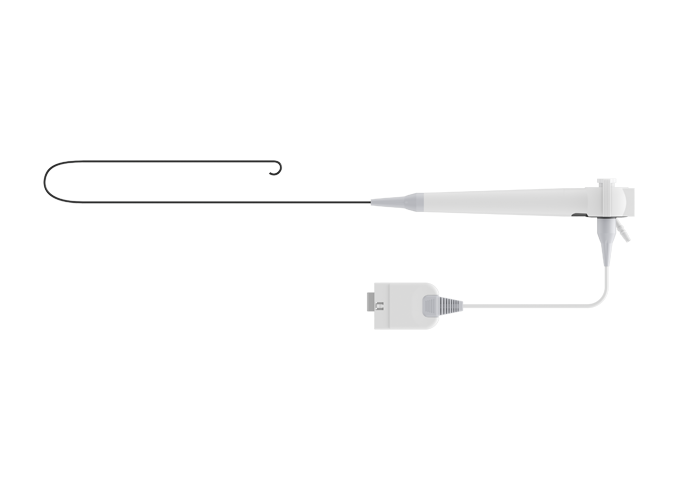

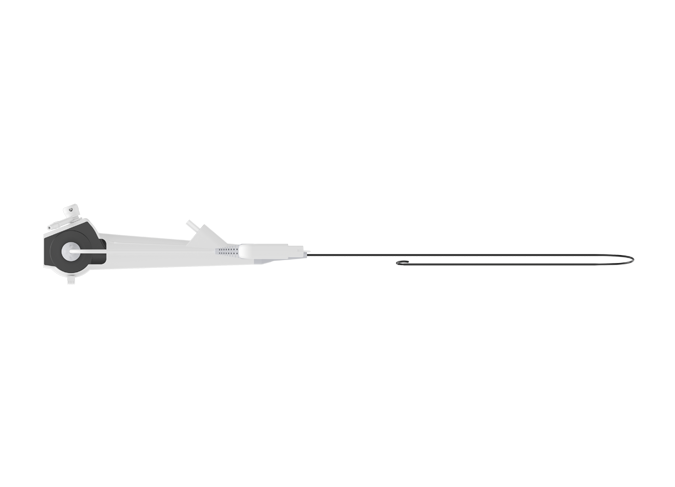

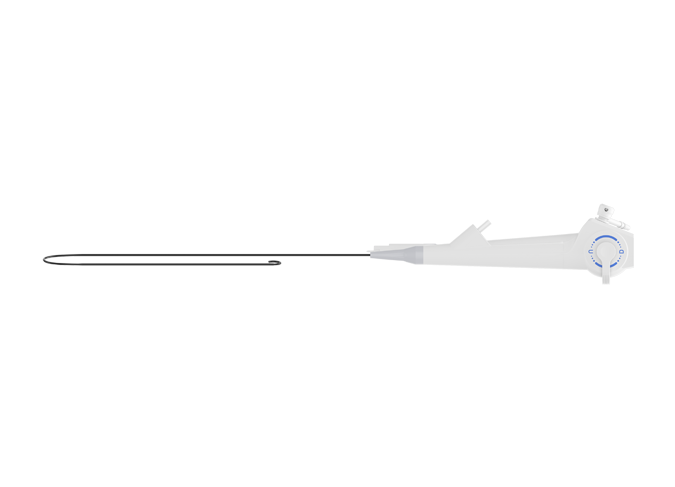

CAK Disposable Electronic Bronchoscope Catheter: This product is a disposable medical device, used in conjunction with the image processor (model: AKYDNJA) produced by our company. It enters the human body through the bronchus, provides images through a video monitor, and cooperates with other accessories to perform endoscopic examinations or endoscopic surgeries on the patient's bronchi at all levels.
| Model | Working Length (mm) | Outer Diam. Of the Distal End (mm) | Outer Diam. Of the Insertion Tube (mm) | Maximum Outer Diam. Of the Insertion Part (mm) | Internal Diam. Of Device Channel (mm) |
| AKYZQGA | 600 | ø2.7 | ø2.8 | ≤ø2.8 | ≥ø1.2 |
| AKYZQGB | 600 | ø3.1 | ø2.9 | ≤ø3.2 | ≥ø1.2 |
| AKYZQGC | 600 | ø4.5 | ø4.5 | ≤ø4.7 | ≥ø2.2 |
| AKYZQGD | 600 | ø5.3 | ø5.3 | ≤ø5.5 | ≥ø2.8 |
| AKYZQGE | 600 | ø5.6 | ø5.6 | ≤ø5.9 | ≥ø3.2 |
| AKYZQGF | 600 | ø5.8 | ø5.8 | ≤ø6.2 | ≥ø2.8 |
With a larger round turn: the whole series provides ±220° bending parts, and the round turning radius provides better maneuverability.
Three-dimensional deflection of the bending part: Under special circumstances, it brings a larger three-dimensional field of view for operation; some relatively fine deflection can be achieved.
Better load bending capacity: Optimized to the optimal load state, providing the lowest bending breakage rate.
High-transmittance tip with cutting angle: The cutting angle tip has fast mirroring, less damage, improved surgical efficiency, and more uniform lighting.
Large forceps-mirror ratio, multiple models: forceps-mirror ratio>0.57; higher suction efficiency, compatible with more types of consumables; 6 models to meet various clinical needs.
